Rubber Track Pads

Drawing on a decade of experience and invaluable customer feedback, our rubber track pads have undergone continuous refinement. With a diverse size range from 230mm to 800mm and an annual production capacity of 600,000 units, we are well-equipped to fulfill your requirements.

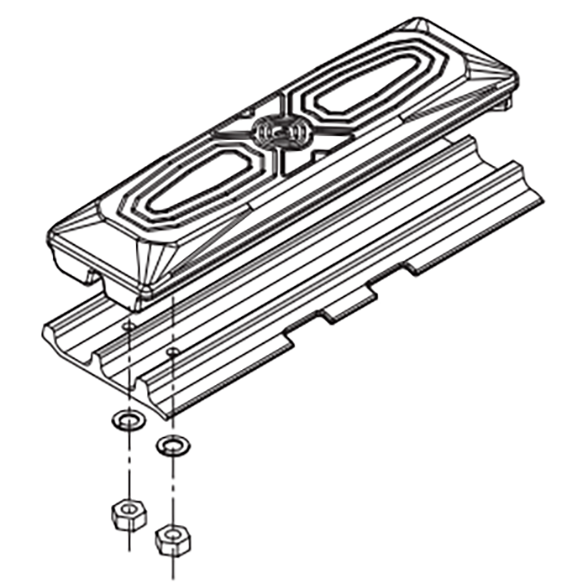

Bolt and Hook

  • Key Features:

    • Hybrid design: clips on one side, bolts on the other
    • Fast installation with secure attachment
    • Combines fitting speed with connection strength

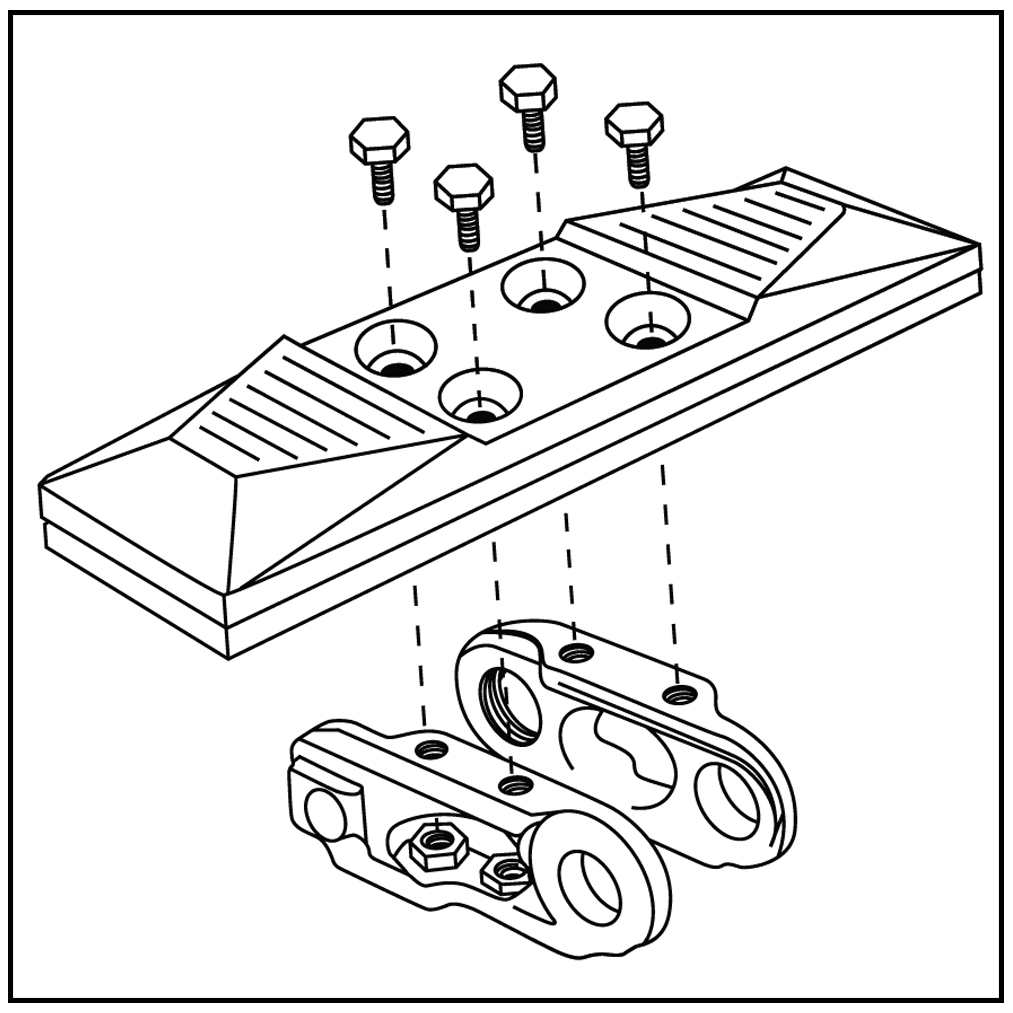

Bolt-On

  • Key Features:

    • Secure bolt-on attachment to steel track shoes
    • Cost-effective track conversion solution
    • Gap-free design for even wear and extended lifespan

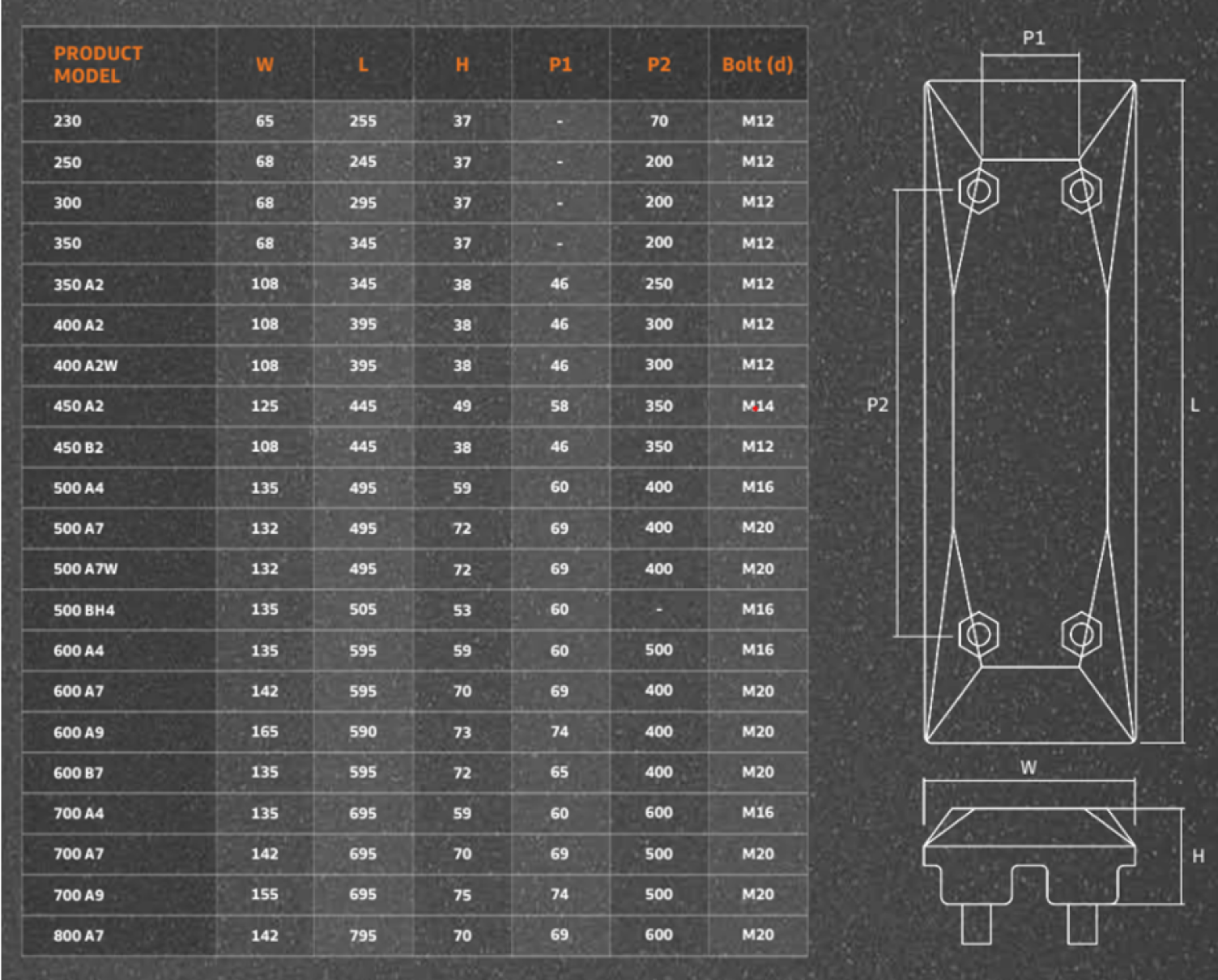

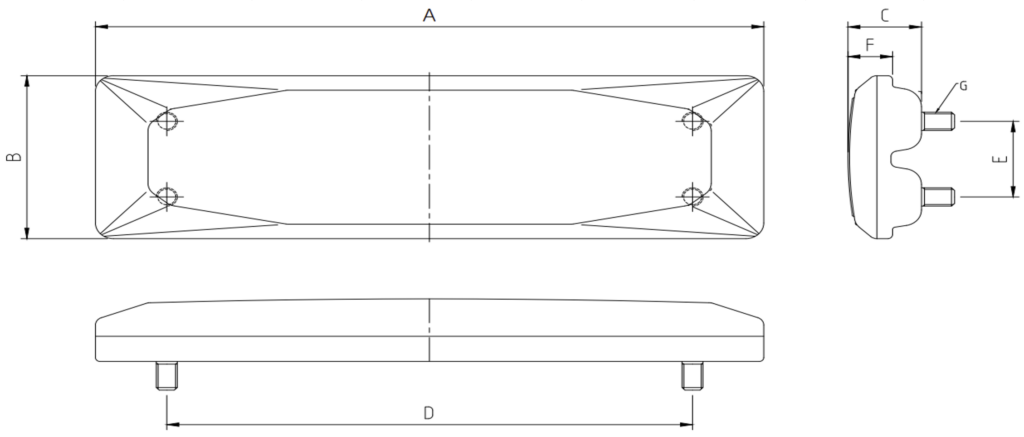

Size Specification
No. Type Model Length
A		 Width
B		 Height
C		 Longitudinal
Bolt Spacing
D		 Transverse
Bolt Spacing
E		 Tread Depth
F		 Bolt Projection
 G		 Bolt Type
1 Bolt-on (2Bolts) STAR 230 225 65 37 150 – 21.5 19 M12
2 Bolt-on (2Bolts) STAR 250 245 68 37 200 – 20.5 19 M12
3 Bolt-on (2Bolts) STAR 300 295 68 37 200 – 20.5 19 M12
4 Bolt-on (2Bolts) P101-300 295 68 36 200 – 19.5 19 M12
5 Bolt-on (2Bolts) STAR 350 345 68 37 200 – 20.5 19 M12
6 Bolt-on (4Bolts) STAR 350 A2 345 108 39 250 46 28 19 M12
7 Bolt-on (4Bolts) STAR 400 A2 395 108 39 300 46 28 19 M12
8 Bolt-on (4Bolts) STAR 400 B2 395 100 43 300 46 25 23 M12
9 Bolt-on (4Bolts) C135-400 390 102 39 300 46 25 21.8 M12
10 Bolt-on (4Bolts) B135-400 395 100 43 300 46 18 23 M12
11 Bolt-on (4Bolts) P135-400 395 108 37 300 46 26 19 M12
12 Bolt-on (4Bolts) D135-400 388.5 101.3 40.5 300 46 24.6 19 M12
13 Bolt-on (4Bolts) P135-450 445 110 37 350 46 26 19 M12
14 Bolt-on (4Bolts) P154-450 445 125 49 350 58 29 22 M14
15 Bolt-on (4Bolts) D135-450 445 100 40 350 45 28 22 M12
16 Bolt-on (4Bolts) STAR 450 A2 445 125 49 350 58 29.7 22 M14
17 Bolt-on (4Bolts) STAR 450 B2 445 108 39 350 46 28 19 M12
18 Bolt-on (4Bolts) C154-450 445 120 50 350 58 29.8 17 M14
19 Bolt-on (4Bolts) P171-500 495 135 51 400 60 31 26 M16
20 Bolt-on (4Bolts) P175-500 495 129 55 400 57 30 26 M16
21 Bolt-on (4Bolts) D175-500 490 135 60 400 60 40 25 M16
22 Bolt-on (4Bolts) STAR 500 A4 495 135 59 400 60 39 26 M16
23 Clip+2Bolts STAR 500 BH4 500 127 56 – 60 31 26 M16
24 Bolt-on (4Bolts) STAR 500 A7 495 146 69 400 69 43 32 M20
25 Bolt-on (4Bolts) STAR 600 A2 595 125 49 500 58 29.7 22 M14
26 Bolt-on (4Bolts) STAR 600 A4 595 135 59 500 60 39 26 M16
27 Bolt-on (4Bolts) STAR 700 A4 695 135 59 600 60 39 26 M16
28 Bolt-on (4Bolts) STAR 600 A7 595 142 69 400 69 43 34 M20
29 Bolt-on (4Bolts) STAR 700 A7 695 146 69 500 69 43 34 M20
30 Bolt-on (4Bolts) STAR 800 A7 795 146 69 600 69 43 32 M20
31 Bolt-on (4Bolts) STAR 600 B7 595 136 71 400 65 45 31 M20
32 Bolt-on (4Bolts) STAR 700 B7 695 136 71 500 64 45 32 M20
33 Bolt-on (4Bolts) STAR 600 A9 590 165 74 400 74 37.5 35 M20
35 Bolt-on (4Bolts) STAR 700 A9 695 156 76 500 75 39 35 M20
